Technical Data
Impressive performance by the numbers
Detailed technical specifications, performance data, and dimensional information for the Do228 NXT.
Proven Performance
0
NM
Flight Range
0
Meters
STOL Landing Distance
0+
Hours
Mission Endurance
0
KTAS
Cruise Speed
Specifications
Aircraft Data
Dimensions
| Imperial | Metric | |
|---|---|---|
| Overall height | 15 ft 11 in | 4.86 m |
| Overall length | 54 ft 4 in | 16.56 m |
| Wingspan | 55 ft 8 in | 16.97 m |
Passenger Compartment
| Imperial | Metric | |
|---|---|---|
| Overall length | 23 ft 3 in | 7.08 m |
| Maximum width | 4 ft 4 in | 1.32 m |
| Maximum height | 5 ft 1 in | 1.55 m |
| Compartment volume | 519 ft³ | 14.7 m³ |
Doors (Height × Width)
| Imperial | Metric | |
|---|---|---|
| Cockpit door | 2 ft 9 in × 2 ft 2 in | 0.84 m × 0.65 m |
| Passenger airstair door | 4 ft 5 in × 2 ft 1 in | 1.34 m × 0.64 m |
| Passenger / cargo door | 4 ft 5 in × 4 ft 2 in | 1.34 m × 1.28 m |
| Baggage door (front) | 3 ft 11 in × 1 ft 8 in | 1.20 m × 0.50 m |
| Baggage door (rear) | 2 ft 11 in × 1 ft 9 in | 0.89 m × 0.53 m |
| Emergency exits (3) | 2 ft 2 in × 1 ft 7 in | 0.67 m × 0.48 m |
Engines
| Imperial | Metric | |
|---|---|---|
| Manufacturer | Honeywell | |
| Model | 2× TPE331-10 with MTV-27 propeller | |
| Power output | 579 kW (776 SHP) each (flat) rated | |
| Takeoff noise level | 76.7 dB(A) | |
| Engine start temp. | −40°F to 131°F | −40°C to 55°C |
| Engine operation temp. | −65.2°F to 131°F | −54°C to 55°C |
Weights
| Imperial | Metric | |
|---|---|---|
| Max. takeoff weight (MTOW) — Standard | 14,110 lb | 6,400 kg |
| MTOW — Optional civil | 14,495 lb | 6,575 kg |
| MTOW — Optional military | 14,550 lb | 6,600 kg |
| Max. landing weight (MLW) — Standard | 13,448 lb | 6,100 kg |
| MLW — Optional | 14,110 lb | 6,400 kg |
| Max. zero fuel weight (MZFW) | 13,095 lb | 5,940 kg |
Payload & Fuel
| Imperial | Metric | |
|---|---|---|
| Basic weight — Cargo layout | 8,157 lb | 3,700 kg |
| Basic weight — 19 PAX | 8,631 lb | 3,915 kg |
| Basic weight — Mission layout | 9,204 lb | 4,175 kg |
| Max. usable fuel — Standard | 4,156 lb | 1,885 kg |
| Max. usable fuel — Optional wet wing | 4,965 lb | 2,252 kg |
| Max. useful load — Standard | 5,952 lb | 2,700 kg |
| Max. useful load — Optional civil | 6,338 lb | 2,875 kg |
| Max. useful load — Optional military | 6,393 lb | 2,900 kg |
Aircraft Dimensions & Views

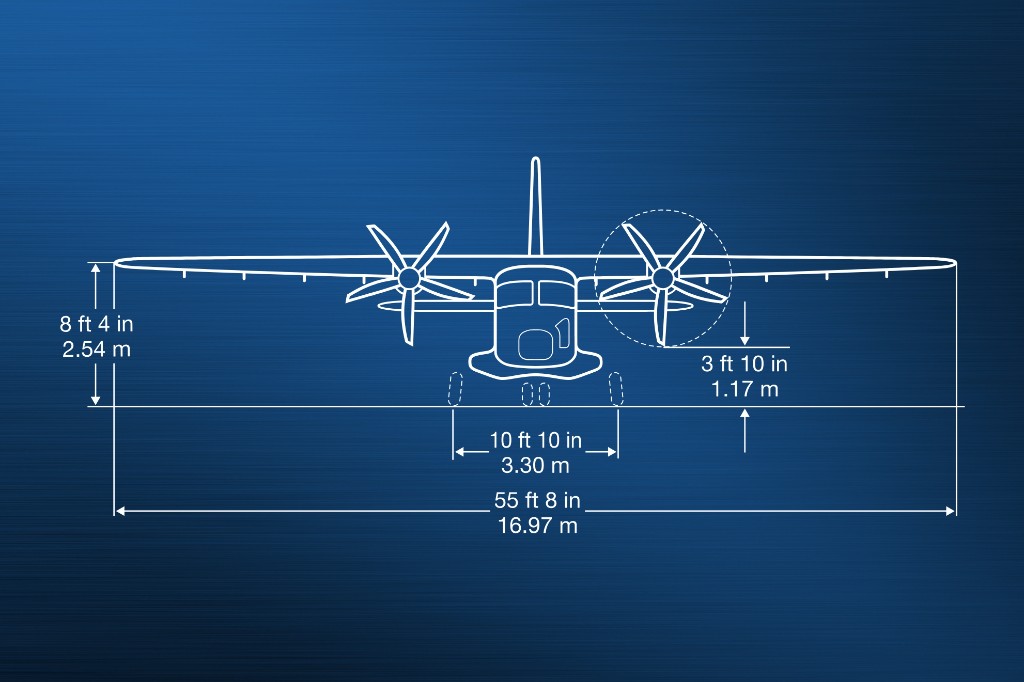

Front View with Dimensions

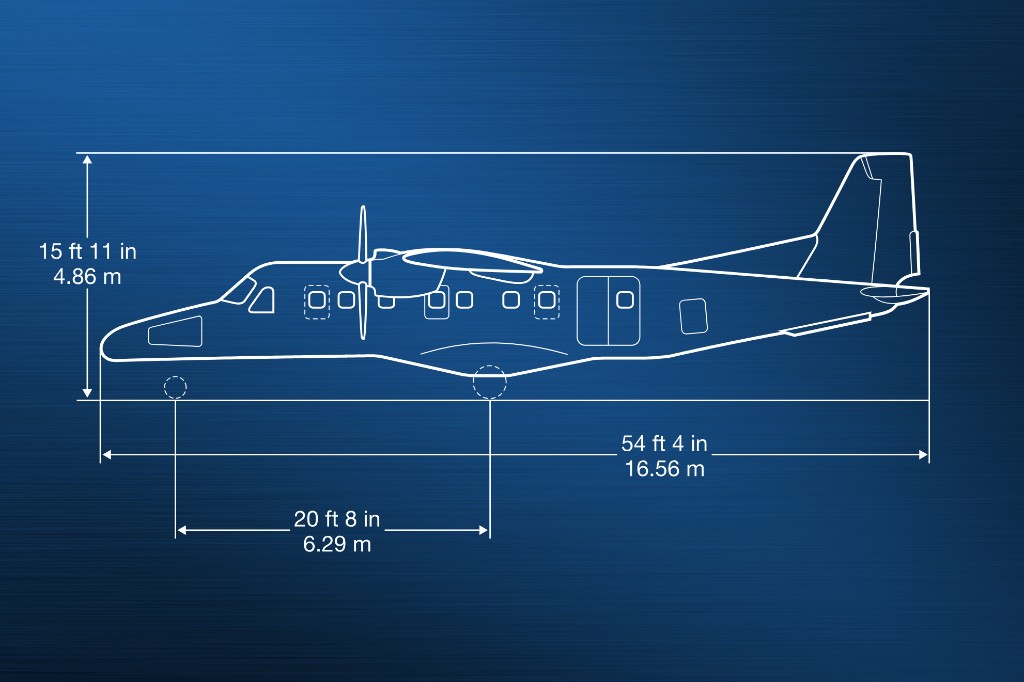

Side View with Dimensions
Footnotes
- IOptional MTOW increase to 6,575 kg (civil) / 6,600 (military) possible
- IIOptional MLW increase to 6,400 kg
- IIIOptional wet wing increases max. usable fuel to 2,252 kg
- IVMTOW (14,110 lb), paved dry runway, 0 kts wind, 0% slope, flaps 1, engine failure at V1
- VMTOW (14,110 lb), paved dry runway, 0 kts wind, 0% slope, flaps 1, engine failure at V1
- VIMLW (13,448 lb), paved dry runway, 0 kts wind, 0% slope, flaps DN, unfactorized data
- VIIMTOW (14,110 lb), cargo layout incl. 2 pilots each 187 lb, ISA, FL100, 0 kts wind, best range speed, NBAA IFR reserves (100 NM alternate)
- VIIIISA, sea level, MTOW (14,110 lb), flaps 1, VY
- IXISA, sea level, MTOW (14,110 lb), flaps UP, VYSE
- XMTOW STOL (12,570 lb), paved dry runway, 0 kts wind, 0% slope, flaps 2, unfactorized data
- XIMLW STOL (12,570 lb), paved dry runway, 0 kts wind, 0% slope, Flaps DN, unfactorized data
Downloads
Do228 NXT Brochure
Comprehensive overview of the Do228 NXT, its capabilities, and mission configurations.
PDFDownload

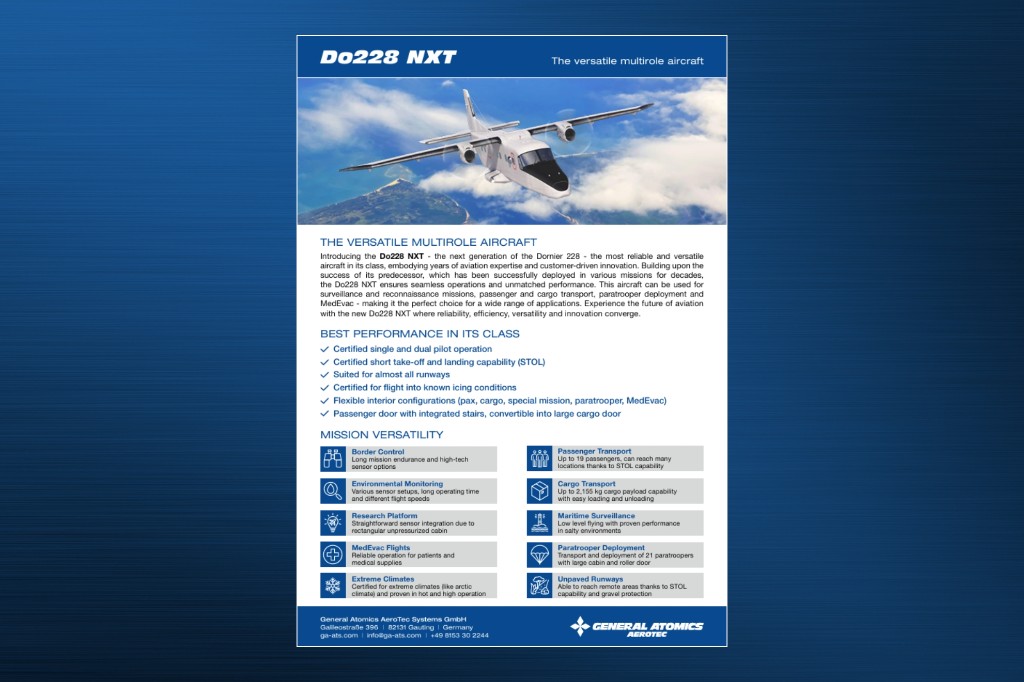

Do228 NXT Data Sheet
